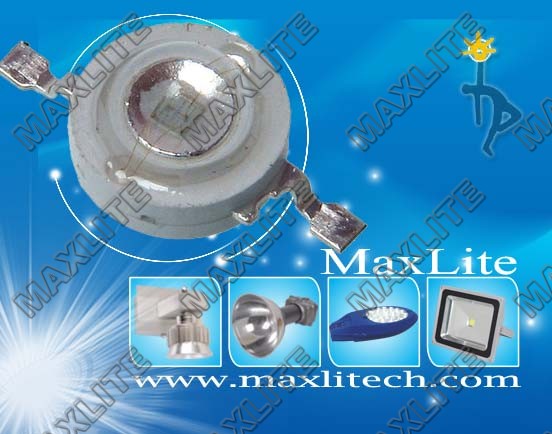

| 1W Blue Star Emitter |
|
|
|
Part No. |
Emitted Color |
Wavelength |
Luminous Intensity |
Forward Voltage |
Forward Current |
Viewing Angle |
|
ML-P04B3410110-S |
Blue |
460-470nm |
10-15LM |
3.0V-3.6 |
350mA |
90กใ/120กใ/140กใ |
|
ML-P04B3410115-S |
Blue |
460-470nm |
15-20LM |
3.0V-3.6 |
350mA |
90กใ/120กใ/140กใ |
|
