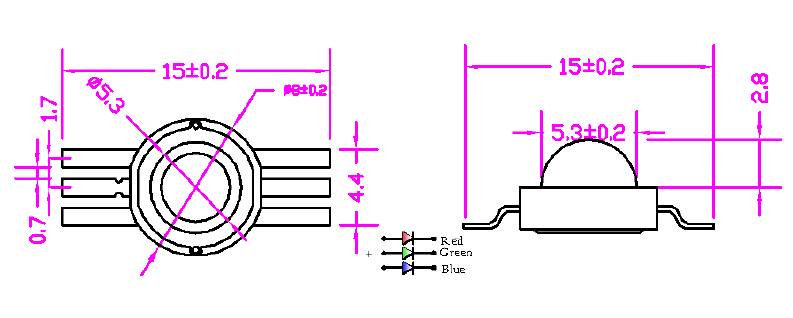

3W 6-pin RGB Star Emitter


Part No.

Emitted Color

Color Temperatue

Wavelength

Luminous Intensity

Forward Voltage

Forward Current

Viewing Angle

ML-P6PGTRGB6303

Red

620-630NM

30-40LM

2.0-2.4V

350mA

140°

Blue

455-465NM

10-20LM

3.2-3.6V

350mA

140°

Green

520-530NM

60-70LM

3.2-3.6V

350mA

140°
